American DJ releases its new myDMX-RM lighting control interface that not only acts as a hardware dongle for the myDMX 3.0 software but also offers internal storage with 16 programmable trigger buttons.
myDMX is ADJ’s extremely popular multi-platform DMX control software / hardware system (Windows and Mac OSX compatible) that offers an easy-to-use interface, powerful features and an affordable price tag.
Featuring a large library of fixture profiles – as well as a custom Profile Editor – it is easy to setup myDMX to control any DMX-compatible lighting or effects equipment. An intuitive interface and powerful features (including a drag-and-drop effects generator) then make programming and controlling complex shows a breeze, while the latest version of the software – 3.0 – also includes additional useful features such as Blind Editing (the ability to change scenes without outputting DMX) and the option to playback multiple scenes at a time.

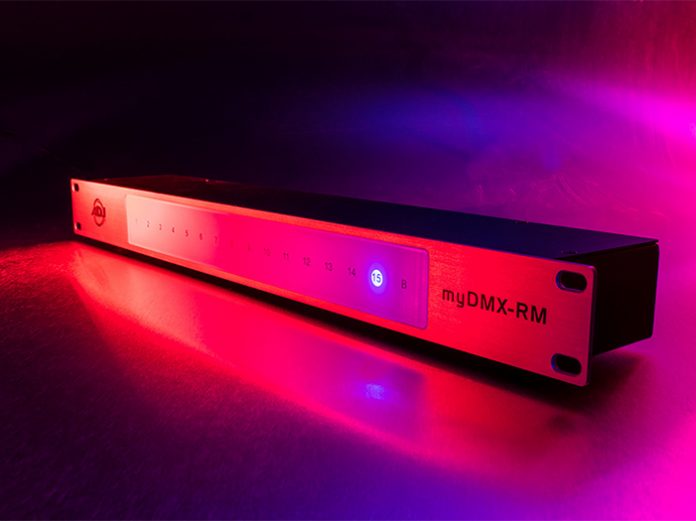

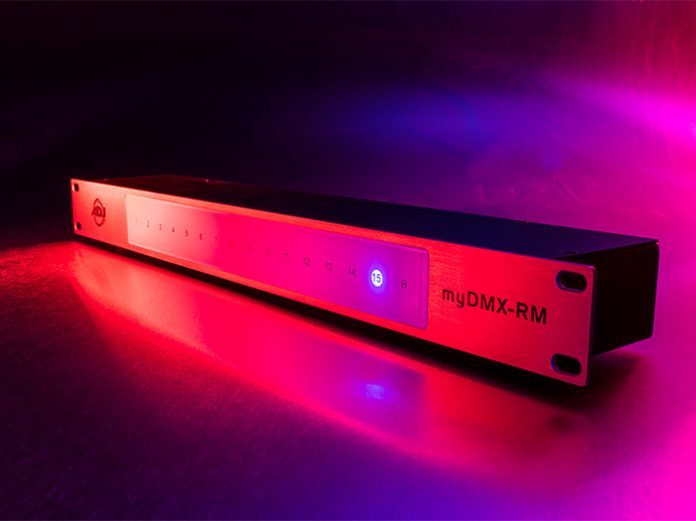

The ADJ myDMX-RM is a robust 19” rack mountable interface that connects a computer running the myDMX 3.0 software, via USB, to a DMX-controllable lighting rig through a standard XLR connection. Out of the box, the unit allows the use of myDMX 3.0 Express Mode, which includes all of the standard features needed to set up, program and control a light show. It is then possible to upgrade the software (via store.dmxsoft.com) to unlock advanced features such as a 3D Visualizer, MIDI control and ‘Easy Remote’ smartphone/tablet control app).
Through the software, it is also possible to assign lighting programs to each of the myDMX-RM’s 16 trigger buttons. These programs are then stored on the device itself and can be recalled, simply by pushing the button, even if the computer running myDMX 3.0 has been disconnected. This makes the unit ideal for use in situations where it isn’t possible to have a lighting operator constantly on hand, for example in a bar, school or event venue.
It is also perfect for use in venues such as lounge clubs where a lighting operator will arrive part way through the day’s operating hours. The venue manager can easily select a pre-programmed ‘warm-up’ Scene, using one of the myDMX-RM’s trigger buttons, when the venue opens. Later, when it’s time to transition from a bar atmosphere to full-on dancing, the lighting operator can hook up their laptop to the interface and seamlessly assume full control of the rig.
Likewise, the unit is ideal for small clubs that can’t justify the expense of a designated lighting operator. The myDMX-RM can be pre-programmed with a variety of different looks and effects which can then easily be triggered by the DJ to complement their musical mix.
Finally, the myDMX-RM can also be used by lighting designers and operators to provide a level of backup against a computer crash. When controlling a rig from myDMX through the myDMX-RM important scenes can be stored on the unit’s internal memory so that if the computer running the software crashes, or stop functioning for any reason, changes to the light show can still be made using the RM’s trigger buttons while the computer issue is resolved.
