Elation Introduces the Cuepix 16 IP

As more and more projects and shows are staged outdoors, Elation Professional is again expanding on its leading line of multi-environmental IP-rated products with the new Cuepix 16 IP.

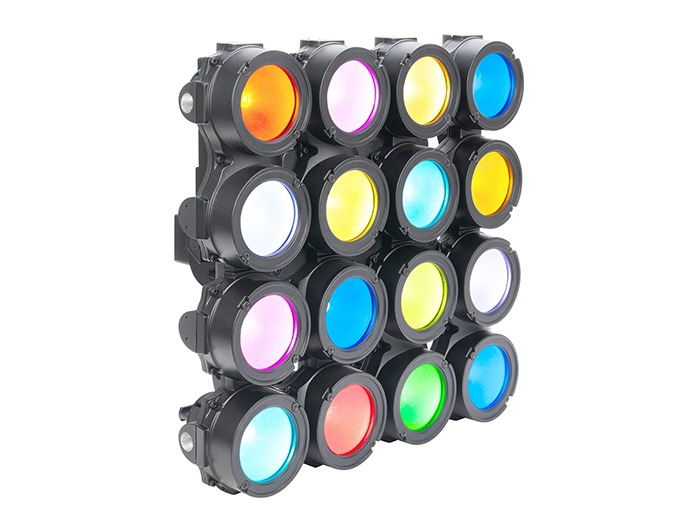

The Elation Professional Cuepix 16 IP is a powerful 4×4 matrix LED blinder and effect panel with all-weather IP65 protection. An updated version of the company’s Cuepix Panel, Elation’s popular 5 x 5 LED matrix panel that has enjoyed great success since launching 5 years ago, the Cuepix 16 IP fulfils the need for more IP-rated blinder/effect options.

Lighting fixtures mounted on a downstage truss-like blinder/effect lights, or general area wash fixtures, are especially exposed to the elements. Now designers can add high-impact colour or white light, eye candy or pixel-mapped effects, to productions of all types, indoors or out, without the worry of weather and cost and inconvenience of protective coverings.

The sleekly-designed Elation Professional Cuepix 16 IP houses 16 long-life 30W RGBA COB LEDs for a full spectrum of well-balanced, custom colours (saturates to pastels) with no pixelated rainbow shadows. The added amber LED compared to the RGB-based Cuepix Panel extends the possible range of colours and gives more control over white balance, producing a better warm white. The COB LEDs give a higher-density output and a more even light distribution for superior all-around performance.

Each COB module is individually controllable for a wider scope of design possibilities while RGB, dynamic amber and pixel flip modes add to its creative potential. The five included pixel flip modes make it easier for users to uniformly configure all pixels in multi-panel configurations regardless of their installation orientation.

The high-power LED colour matrix projects a wide 62° beam angle with an 87° field angle for better coverage while maintaining a high level of uniformity. When used with cameras, the silent fixture works absolutely flicker-free thanks to its user-adjustable LED refresh rate and Gamma brightness settings. The Elation Professional Cuepix 16 IP dims smoothly all the way to zero with adjustable dimming curves included for programming ease. The fixture also includes an adjustable high-speed strobe (1-18fps) for those energetic flashes of light.

The Elation Professional Cuepix 16 IP is easy to use with a 4 x 4 semi-transparent blow-through design that not only keeps the weight down (33.0 lbs., 15 kg) but allows multiple fixtures to be easily linked together to create horizontal and vertical arrays. Versatile rigging options include 90° adjustable and fixed yoke brackets with 3-position mounting holes. Convenient features like integrated alignment pins and interlocks make multiple panel matrix designs easy to set up and disassemble. Optional Omega Brackets are also available.

Professional control options include DMX (14 DMX channel modes from 3-128 channels) and RDM (Remote Device Management) while on-board Art-NET and KlingNET™ protocols allow for more creative pixel-mapping designs. The fixture is outfitted with IP-rated 5pin DMX, RJ45 etherCON, and Seetronic Powerkon IP65 in/out connections. A 4-button control panel with LCD menu display makes for easy navigation through DMX and manual settings and an auto-sensing power supply allows the unit to operate anywhere in the world.

The Elation Professional Cuepix 16 IP offers all the benefits of LED like greater reliability and less maintenance. It consumes little power (520W max power consumption) for a lower cost of ownership and with a long LED life rating, service intervals are few and far between.
